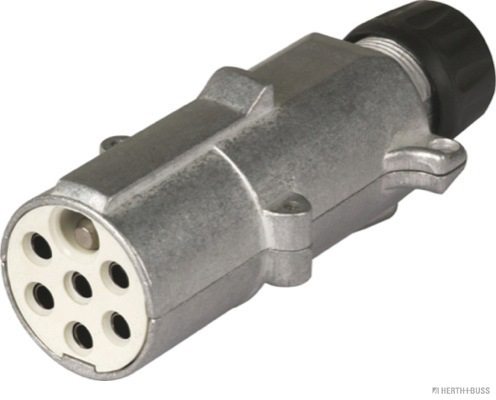

Plug, 7-pin, 24V, aluminium (51305598)

Item-no.: HB51305598

Brand: Herth & Buss

Manufacturer art.-no.: 51305598

blade terminal, DIN/ISO 3731 S-type, mating width 6.3 mm, load capacity at 24V 16 A (1.5 mm²), load capacity at 24V 25 A (2.5 mm²), with strain relief, with cable gland

Show more Show less

Attributes

Material

Aluminium

Mounting type

Blade terminal connection

Plug-in width (mm)

6.3

Load capacity at 24V

16 A at 1.5 mm² / 25 A at 2.5 mm²

Connection / Terminal

With cable gland

Number of poles

Voltage (V)

DIN / ISO

3731 S-type

Supplementary info

With strain relief
