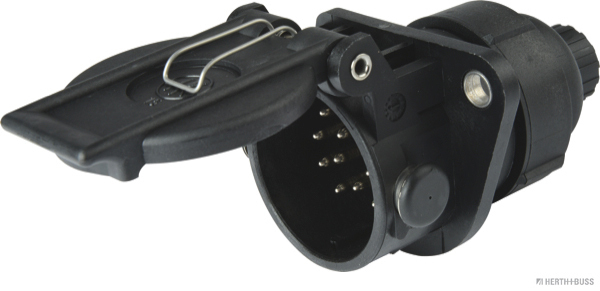

Plastic socket (51305642)

Item-no.: HB51305642

Brand: Herth & Buss

Manufacturer art.-no.: 51305642

15 -pole, voltage 24 V, DIN/ISO 12098, protection class IP 69, with turned contacts, PG-screw connection, plug version: crimp contact, thread dimension PG 16, with seals, ADR/GGVS-approved, bayonet, wire cross-section 12 x 1.5 mm², 3 x 2.5 mm², tube-Ø 13

Show more Show less

Attributes

Thread dimension

PG16

Mounting type

PG gland, bayonet

Tube Ø (mm)

Protection class (IP code)

IP 69

Plug type

Crimp contact

Approval type

ADR/GGVS-approved

Wire cross-section (mm²)

12x1.5 & 3x2,5

Number of poles

Voltage (V)

DIN / ISO

12098

Supplementary info

With seals, with turned contacts

Show more Show less
