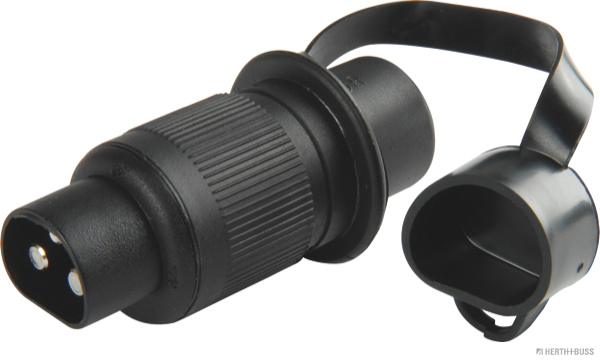

Plastic plug connector (51305636)

Item-no.: HB51305636

Brand: Herth & Buss

Manufacturer art.-no.: 51305636

3-pole, plastic, blade terminal, mating width 6.3 mm, DIN/ISO 9680, voltage from 6 V, to voltage 24 V, load capacity at 24V 16 A (1.5 mm²), load capacity at 24V 25 A (2.5 mm²)

Show more Show less

Attributes

Voltage from (V)

Voltage to (V)

Load capacity at 24V

16 A at 1.5 mm² / 25 A at 2.5 mm²

Material

Plastic

Mounting type

Blade terminal connection

Mating width (mm)

6.3

Number of poles

DIN / ISO

9680

Supplementary info

With rubber grommet
