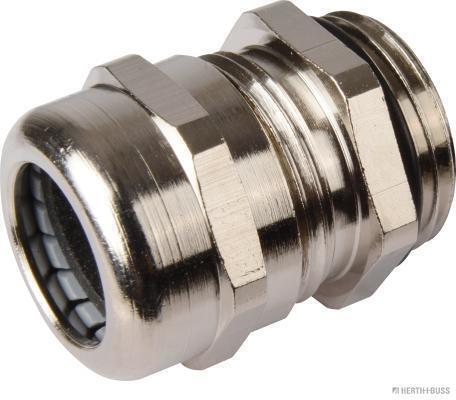

Cable gland, brass, nickel-plated w/ sealing ring, M20x1.5 - Detail 1

Cable gland, brass, nickel-plated w/ sealing ring, M20x1.5 (50390688)

Item-no.: HB50390688
Brand:  Herth & Buss
Manufacturer art.-no.:  50390688
Herth & Buss

with metric thread, thread size M20 x 1.5, clamping range 8 - 13 mm, protection class IP 68, brass, nickel-plated, with sealing ring, SW 22, temperature range from -40°C to 120°C

Show more Show less
Attributes
Thread type
With metric thread
Thread dimension
M20 x 1.5
Clamping range from (mm)
8
Clamping range up to (mm)
13
Protection class (IP code)
IP 68
Material
Brass
Surface
Nickel-plated
Supplementary info
With sealing ring
Width across flats
22
Temperature range from (°C)
-40
Temperature range up to (°C)
+120
Show more Show less
