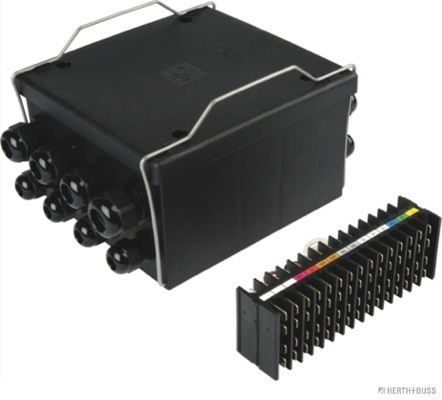

Cable connector box, 16-pole, number of ports 112, 167x99x157mm (50290322)

Item-no.: HB50290322

Brand:  Herth & Buss
Manufacturer art.-no.:  50290322
Herth & Buss

Show more Show less
Attributes
Number of poles
16
Distance of mounting holes 1 (mm)
110
Spacing of mounting holes 2 (mm)
65
Connection thread 1
10 x PG09
Connection thread 2
5 x PG13.5
Connection thread 3
1 x PG16
Component code no.
TÜV (TÜ.EGG.028-96)
Depth (mm)
157
Height (mm)
99
Plug-in width (mm)
6.3
Number of inputs / outputs
16
Number of connections
112
Supplementary info
With seals
Housing type
Housing with plastic cover
Protection class (IP code)
IP 69K
Material
Polyamide
Type of approval
ADR/GGVS-approved
Bore-Ø (mm)
5.5
Number of holes
4
Mounting type
Blade terminal connection
Connection technology
8x4 + 4x8 + 2x14 + 1x20
Width
167 mm
