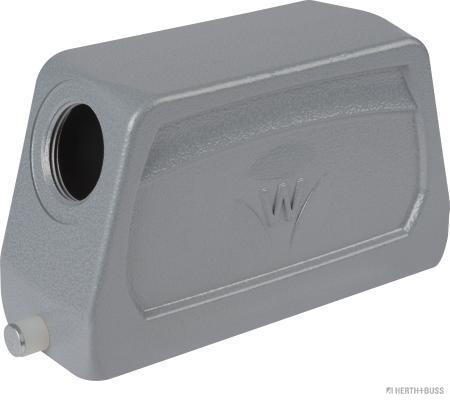

24-pin housing (51305032)

Item-no.: HB51305032

Brand: Herth & Buss

Manufacturer art.-no.: 51305032

24-pole, voltage 500V, current 16A, screw terminal, aluminium, UV-resistant, IP65, longitudinal bracket, temperature range -40 to +120 °C, cable outlet on the side, VDE tested

Show more Show less

Attributes

Number of poles

Voltage [V]

500

Current [A]

Section

Upper section

Mounting type

Screw connection

Material

Aluminium

Chemical property

UV resistant

Protection class [IP code]

IP65

Number of threaded holes

Thread dimension

M25

Housing type

Housing with single-handed locking {longitudinal bracket]

Temperature range from [°C] to [°C]

-40 to +120

Mark of conformity

VDE

Show more Show less
