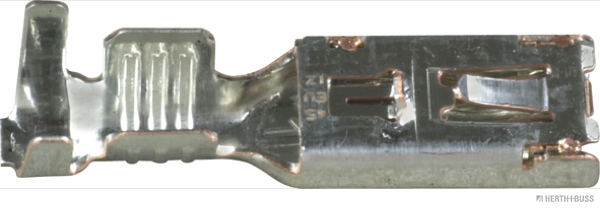

Blade receptacle, tin-plated, SLK 2.8, 1.0-2.5 mm² (50 pieces) (50253226)

Item-no.: HB50253226

Brand:  Herth & Buss
Manufacturer art.-no.:  50253226
Herth & Buss

Show more Show less
Attributes
Dimensions
Höhe: 2,25mm
Manufacturer restriction
Kostal SLK
Material
CuSn/Sn (copper-tin/tin)
Plug design / Surface
Blade receptacle / tin-plated
Plug height / width (mm)
0.8 / 2.8
Wire cross-section (mm²)
1.5
Temperature range (°C)
Up to 150
Current carrying capacity at 20°C (A)
45
Current carrying capacity at 80°C (A)
33
Length
8.8 mm
Width
4.15 mm
Show more Show less
