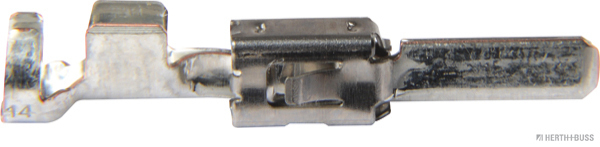

Blade terminal, TE Connectivity, for 1.25-2.5 mm² (50 pieces) (50251897)

Item-no.: HB50251897

Brand:  Herth & Buss
Manufacturer art.-no.:  50251897
Herth & Buss

for plug 50390663, 50390669, 50390675

These are modified contacts (with modified spring), which are used mainly in VW housings. Furthermore, the area between the contact body and the crimping area of these contacts has been modified so that the second contact fuse of the used housings can be closed. Consequently: the contacts with modified springs can be used in all timer housings, however, the standard versions cannot be used in the housings for which the modified versions have been specified.

Show more Show less
Attributes
Manufacturer restriction
TE Connectivity
Wire cross-section (mm²)
1.25 to 2.5
Plug type
Blade terminal
Application
Blade receptacle for plug 50390663, 50390669, 50390675
Width
2.8 mm
Dimensions
H:0,8 x B:2,8mm
Show more Show less
